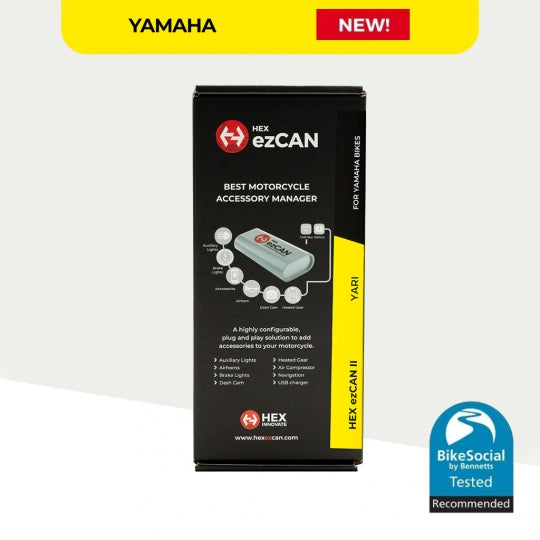

HEX ezCAN II for Yamaha T7 "Yari" Lighting & Accessory Controller

For Yamaha Tenere 700

The ezCAN plugs directly into your motorcycle and listens to the CAN-bus. The best plug and play solution to add accessories to your motorcycle without the need to cut any wires that could void your warranty.

This is the latest version of the ezCAN with four high power output channels which have ultimate configuration!

Customize your bike and make it safer to ride.

This device works on the following Yamaha models:
  • Tenere 700

Key Features

  • One device manages everything
  • Integrates additional safety features
  • Does not void warranty
  • Plugs directly into CAN-Bus (saves installation time and wiring complexity)
  • Unobtrusive - fits perfectly under the seat
  • Easy configuration of software via USB (Mac and Windows PC)
  • Four individually electronically fused channels
  • Waterproof and dust-proof

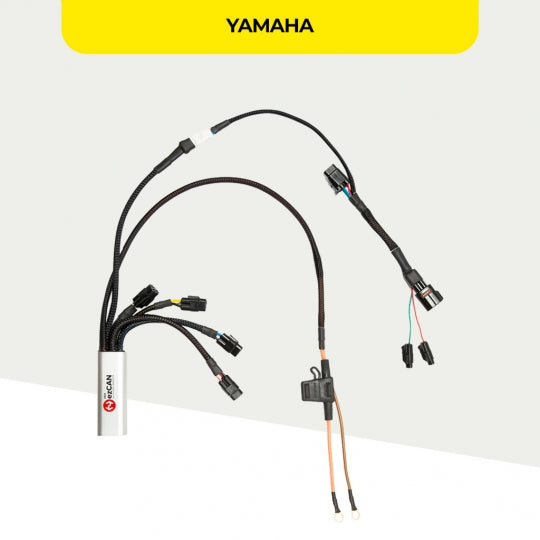

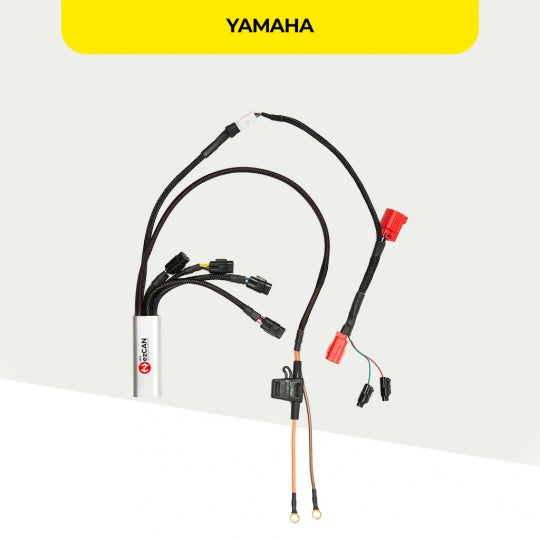

Specifications and Components:

  • Waterproof micro USB connector
  • Battery connection and fuse
  • Two CAN-Bus connectors
  • Four high-power outputs (10AMP continuous / 25AMP, max 20 seconds in rush current)
  • Weight 358 g (12 oz)
  • Product size 55 x 30 x 16mm (2.2 " x 1.2" x 0.6")

Easy Installation:

  1. Download and install the HEX ezCAN software
  2. Install the ezCAN under the seat (Velcro included)
  3. Route and connect the ezCAN battery cables
  4. Plug the ezCAN into the motorcycle CAN-Bus
  5. Plug accessories into the ezCAN
  6. Use the software to configure the ezCAN via USB (Mac or Windows PC Software)

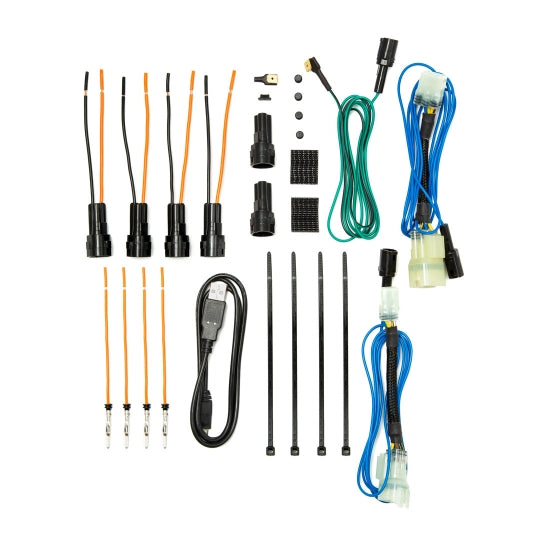

Contents of Package:

    • 1 x ezCAN Device
    • 1 x Micro USB Cable
    • 2 x Velcro Strips
    • 2 x Blanking Plugs
    • 4 x Cable Ties
    • 4 x Two-wire stub connectors (Orange)
    • 4 x Terminal wires (Orange)
    • 4 x Blanking seals
    • 1 x Green Horn Harness
    • 1 x Blue 4-way High beam Harness (for bikes with colour TFT display)
    • 1 x Blue 6-way High beam Harness (for bikes with monochrome display)
    • 1 x Euro5 diagnostic adapter (2022+ Euro5 models)
    • 1 x Euro4 diagnostic adapter (2019-2022 Euro4 models)

More Information:

For more information about this specific Hex ezCAN model, step by step installation guide, and bike specific limitations, please click hereto be directed to Hex directly.
