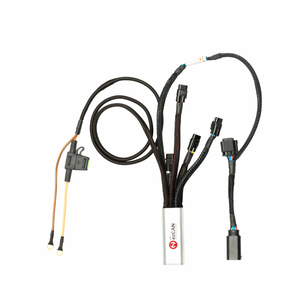

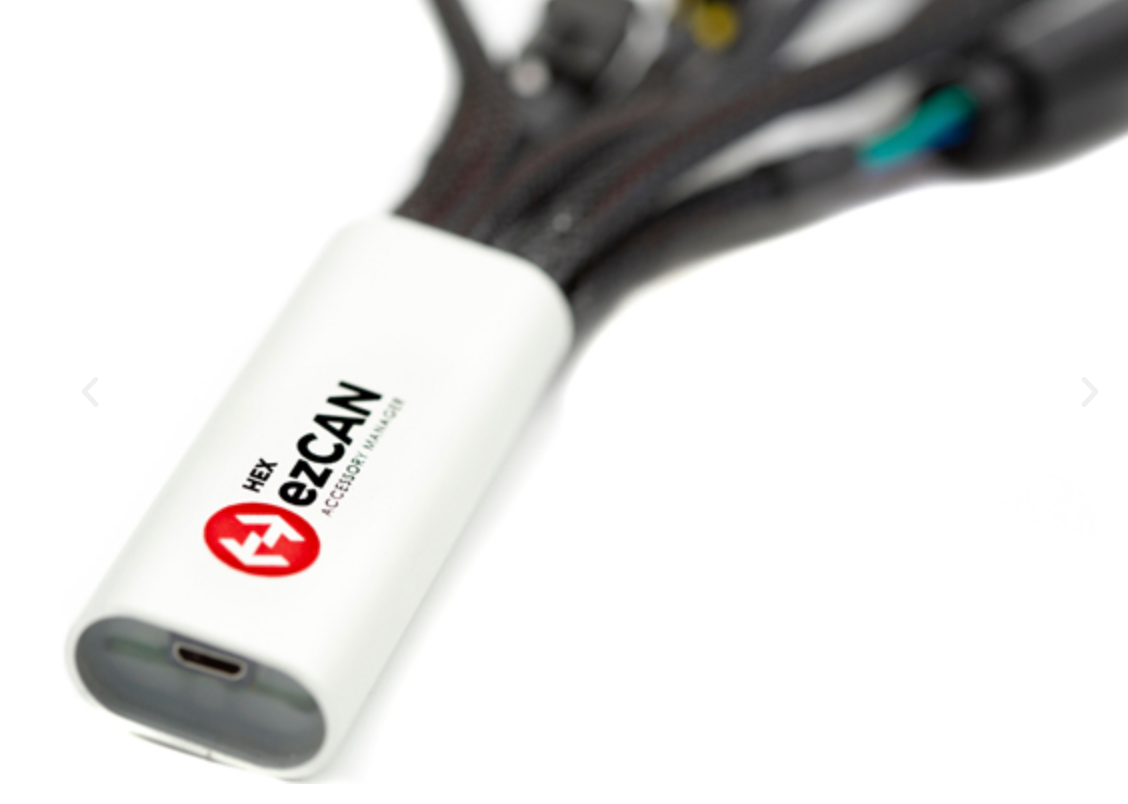

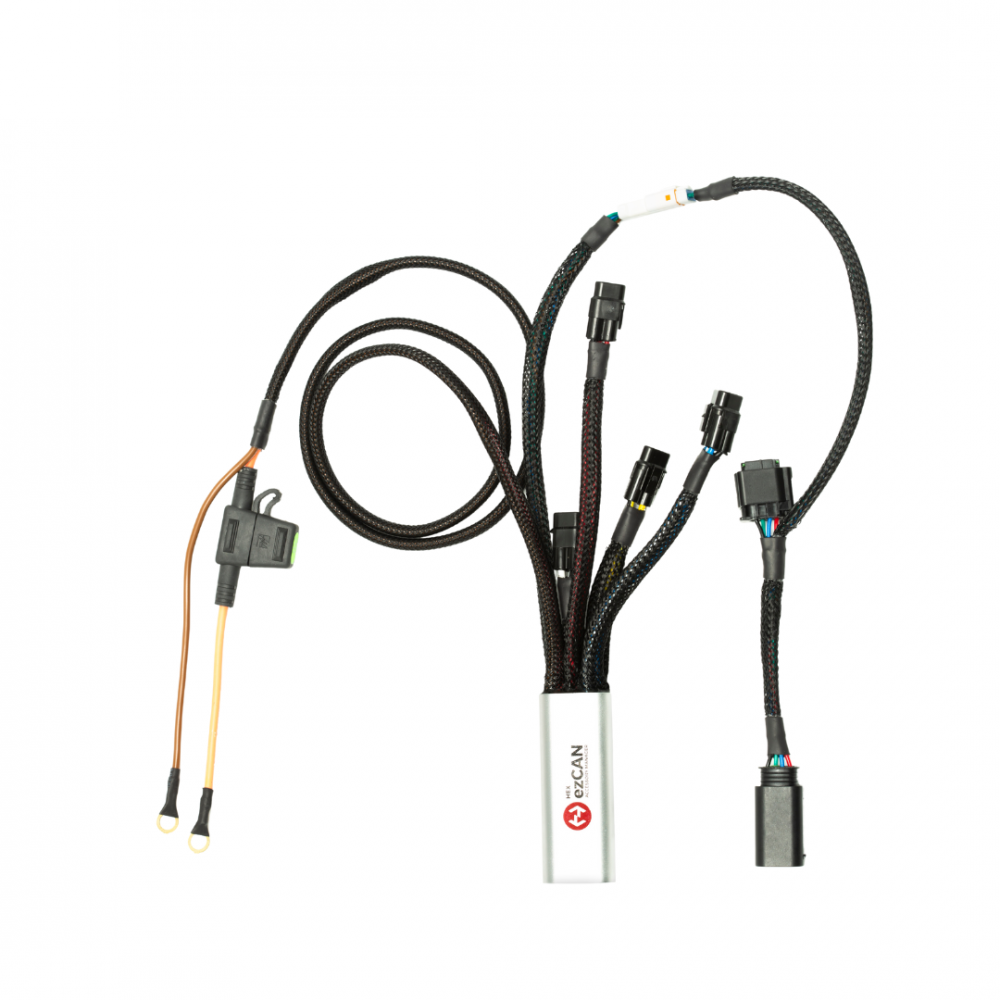

HEX ezCAN II for Honda Africa Twin "Sahara" Lighting & Accessory Controller

For Honda Africa Twin, 2020 and newer.

This is the latest version of the ezCAN with four high power output channels which have ultimate configuration!

Customise your bike and make it safer to ride.

This device works on the following Honda Model:

• CRF 1100 L Africa Twin (2020-On)

Consider purchasing the "Standard ezCAN controller + RUBY conversion cables" for a truly plug and play installation.  This options removes the need for the Hex Extension Cable kit with enough length to reach from the front of any large displacement motorcycle to underneath the rear passenger seat for safe and secure placement of your ezCAN controller.

Key Features

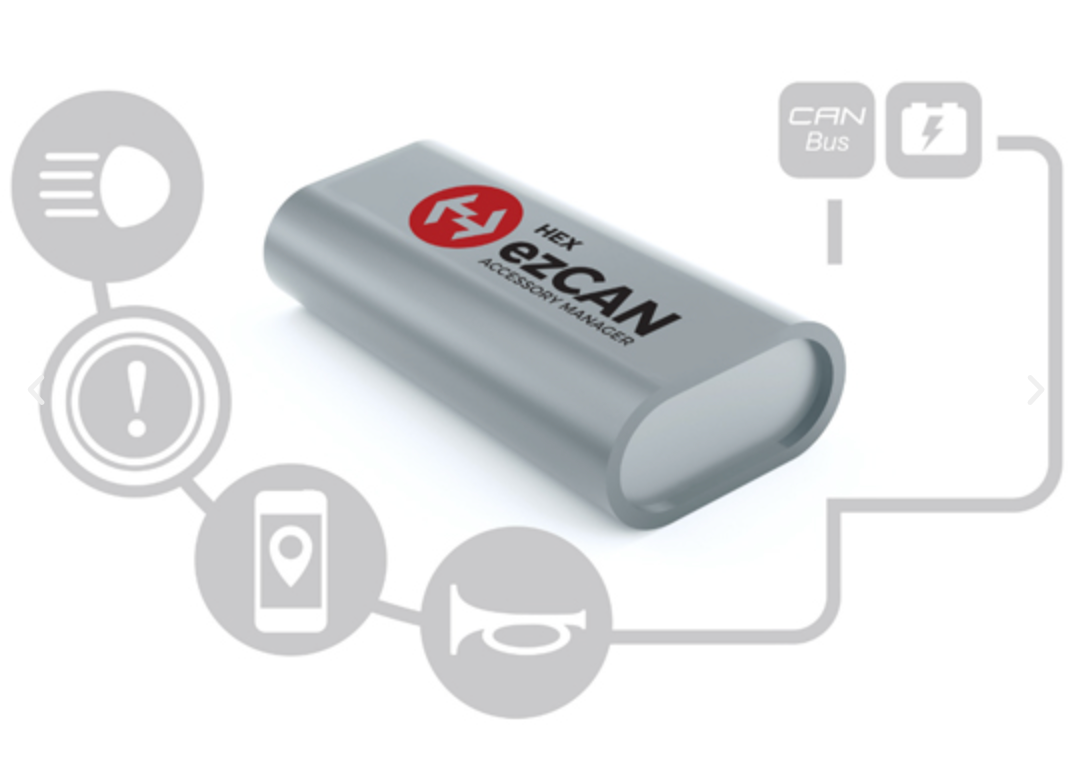

• One device manages everything
• Integrates additional safety features
• Does not void warranty
• Plugs directly into CAN-Bus (saves installation time and wiring complexity)
• Unobtrusive - fits perfectly under the seat
• Easy configuration of software via USB (Mac and Windows PC)
• Four individually electronically fused channels
• Waterproof and dust-proof

Specifications and Components:

• Waterproof micro USB connector
• Battery connection and fuse
• Two CAN-Bus connectors
• Four high-power outputs (10AMP continuous / 25AMP, max 20 seconds in rush current)
• Horn input connector
• Product size 55 x 30 x 16mm (2.2 " x 1.2" x 0.6")

Easy Installation:

1. Download and install the HEX ezCAN software

2. Install the ezCAN under the seat (Velcro included)
3. Route and connect the ezCAN battery cables
4. Plug the ezCAN into the motorcycle CAN-Bus
5. Plug accessories into the ezCAN
6. Use the software to configure the ezCAN via USB (Mac or Windows PC Software)

Contents of Package:

• 1 x ezCAN Device
• 1 x Micro USB Cable
• 2 x Velcro Strips
• 2 x Blanking Plugs
• 4 x Cable Ties
• 4 x Two-wire stub connectors (Orange)
• 4 x Terminal wires (Orange)
• 4 x Blanking seals
• 1 x Extra micro USB Dust Covers
• 1 x Green Horn Harness
• 1 x Piggyback Terminal

More Information:

For more information about this specific Hex ezCAN model, step by step installation guide, and bike specific limitations, please click here to be directed to Hex directly.
