HEX ezCAN II for BMW F650GS Twin, F700GS, F800's, K1300 Lighting & Accessory Controller
The new generation of HEX ezCAN - an accessory manager for motorcycles which enables you to seamlessly add various aftermarket accessories such as additional lights, air horns, GPS, heated jacket and a phone charger with ease and without cutting any wires or voiding your warranty.

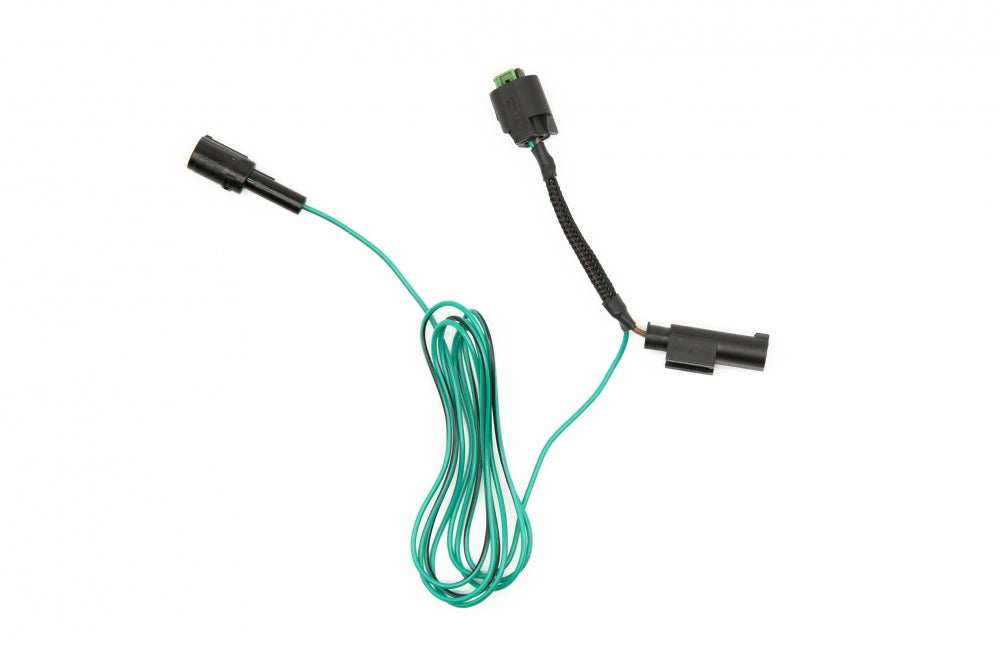

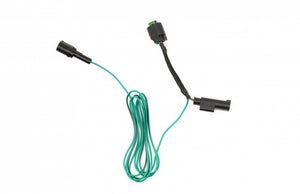

Consider purchasing the "Standard ezCAN controller + RUBY conversion cables" for a truly plug and play installation. This options removes the need for the Hex Extension Cable kit with enough length to reach from the front of any large displacement motorcycle to underneath the rear passenger seat for safe and secure placement of your ezCAN controller.
One device manages everything
Integrates additional safety features
Does not void warranty
Plugs directly into CAN-Bus (saves installation time and wiring complexity)
Unobtrusive - fits perfectly under the seat
Easy configuration of software via USB (Mac and Windows PC)
Four individually electronically fused channels
Waterproof and dust-proof
Specifications and Components:
Waterproof micro USB connector
Battery connection and fuse
Two CAN-Bus connectors
Four high-power outputs (10AMP continuous / 25AMP, max 20 seconds in rush current)
Weight 358 g (12 oz)
Product size 55 x 30 x 16mm (2.2 " x 1.2" x 0.6")
Download and install the HEX ezCAN software
Install the ezCAN under the seat (Velcro included)
Route and connect the ezCAN battery cables
Plug the ezCAN into the motorcycle CAN-Bus
Plug accessories into the ezCAN
Use the software to configure the ezCAN via USB (Mac or Windows PC Software)
TheHEX ezCAN software is available for both Mac and Windows PC and is used via a micro USB cable, which is included in the package.
Use Channel Mapping to select your preferred configuration. The Configuration window then lets you customize the behavior of your accessories according to CAN-Bus inputs, for example setting up an emergency brake light to flash when the ezCAN detects harsh deceleration or the LEDs to flash when the air horn is activated. Accessory/Ignition supply can be set to remain on for a specific time after the ignition is turned off.
Contents of Package:
1 x ezCAN Device
1 x Micro USB Cable
2 x Velcro Strips
2 x Blanking Plugs
4 x Cable Ties
4 x Two-wire stub connectors (Orange)
4 x Terminal wires (Orange)
4 x Blanking seals
1 x Extra micro USB Dust Covers
For more information about this specific Hex ezCAN model, step by step installation guide, and bike specific limitations, please click here to be directed to Hex directly.
