HEX ezCAN II for Harley Davidson Pan America "Laconia" Lighting & Accessory Controller
For Harley Davidson compatibility, see below, for Pan America click here.
The ezCAN plugs directly into your motorcycle and listens to the CAN-bus. The best plug and play solution to add accessories to your motorcycle without the need to cut any wires that could void your warranty.
This is the latest version of the ezCAN with four high power output channels which have ultimate configuration!
Customize your bike and make it safer to ride.
This device works on the following Harley Davidson models:
Dyna from 2012 onwards
Touring from 2014 onwards
Softail from 2011 onwards
Sportster from 2014 onwards
Trike from 2014 onwards
Consider purchasing the "Standard ezCAN controller + RUBY conversion cables" for a truly plug and play installation. This options removes the need for the Hex Extension Cable kit with enough length to reach from the front of any large displacement motorcycle to underneath the rear passenger seat for safe and secure placement of your ezCAN controller.
One device manages everything
Integrates additional safety features
Does not void warranty
Plugs directly into CAN-Bus (saves installation time and wiring complexity)
Unobtrusive - fits perfectly under the seat
Easy configuration of software via USB (Mac and Windows PC)
Four individually electronically fused channels
Waterproof and dust-proof
Specifications and Components:
Waterproof micro USB connector
Battery connection and fuse
Two CAN-Bus connectors
Four high-power outputs (10AMP continuous / 25AMP, max 20 seconds in rush current)
Weight 358 g (12 oz)
Product size 55 x 30 x 16mm (2.2 " x 1.2" x 0.6")
Download and install the HEX ezCAN software
Install the ezCAN under the seat (Velcro included)
Route and connect the ezCAN battery cables
Plug the ezCAN into the motorcycle CAN-Bus
Plug accessories into the ezCAN
Use the software to configure the ezCAN via USB (Mac or Windows PC Software)

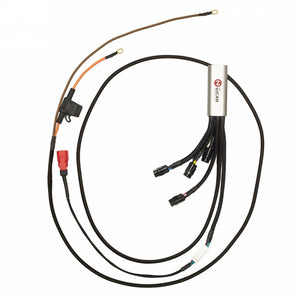

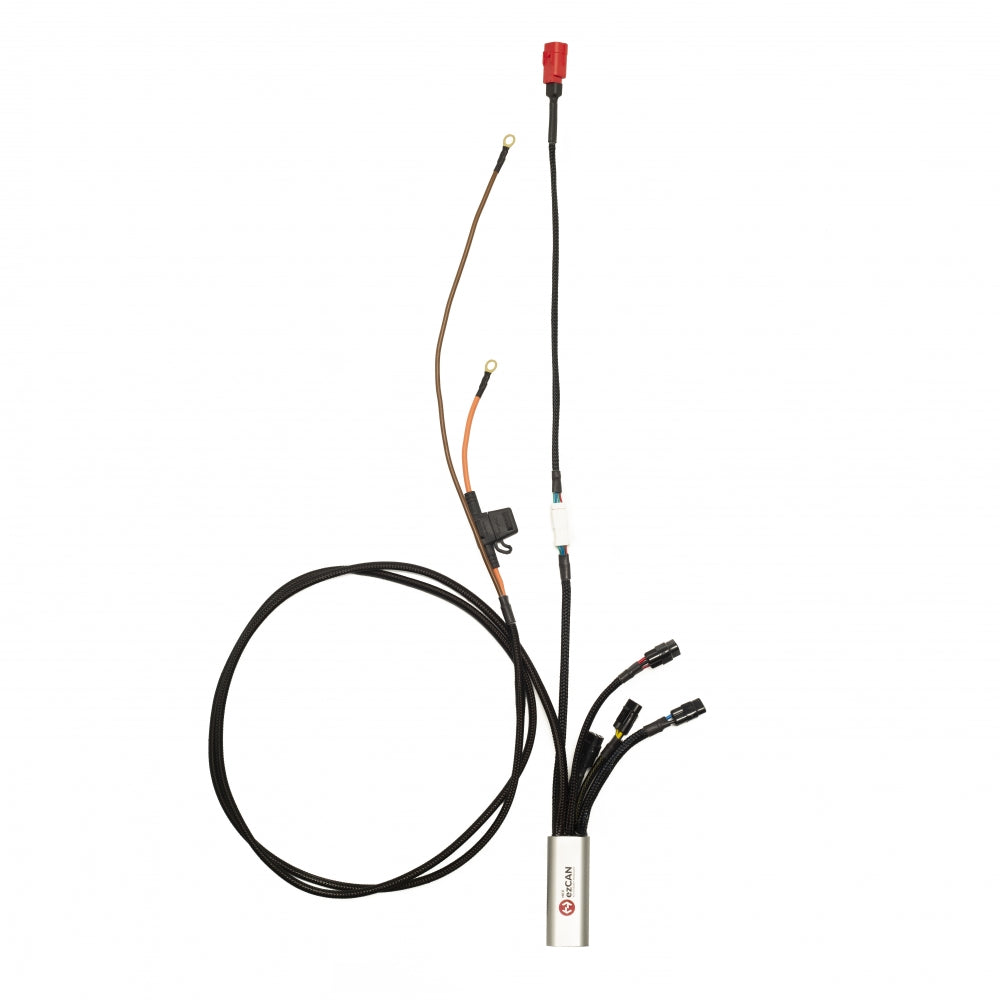

Contents of Package:
1 x ezCAN Device

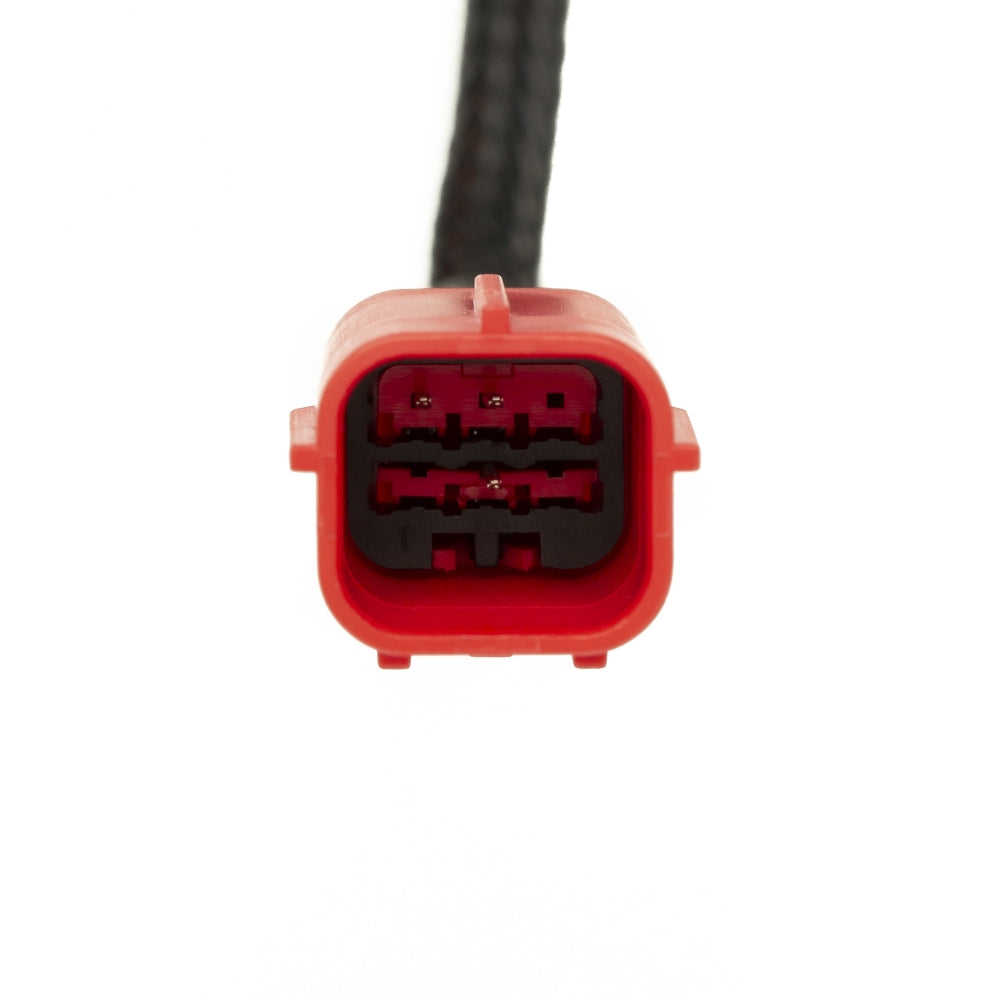

1 x 6-pin Deutsch connector
1 x Euro 5 connector
1 x Micro USB Cable
2 x Velcro Strips
2 x Blanking Plugs
4 x Cable Ties
4 x Two-wire stub connectors (Orange)
4 x Terminal wires (Orange)
4 x Blanking seals
For more information about this specific Hex ezCAN model, step by step installation guide, and bike specific limitations, please click here to be directed to Hex directly.
