HEX ezCAN II for BMW F750GS, F850GS/GSA, F900XR, K1600's, RnineT's, S1000XR

For BMW

• F750GS (All)
• F850GS (All)
• F850GSA (All)
• F900XR
• K1600B (All)
• K1600GT (All)
• K1600GTL (All)
• K1600GTL Exclusive (All)
• K1600GTL Grand America (All)
• S1000XR (All)
• RnineT (All) - Partial support, view details...
• RnineT Pure (All) - Partial support, view details...
• RnineT Scrambler (All) - Partial support, view details...
• RnineT Racer (All) - Partial support, view details...
• RnineT Urban G/S (All) - Partial support, view details...

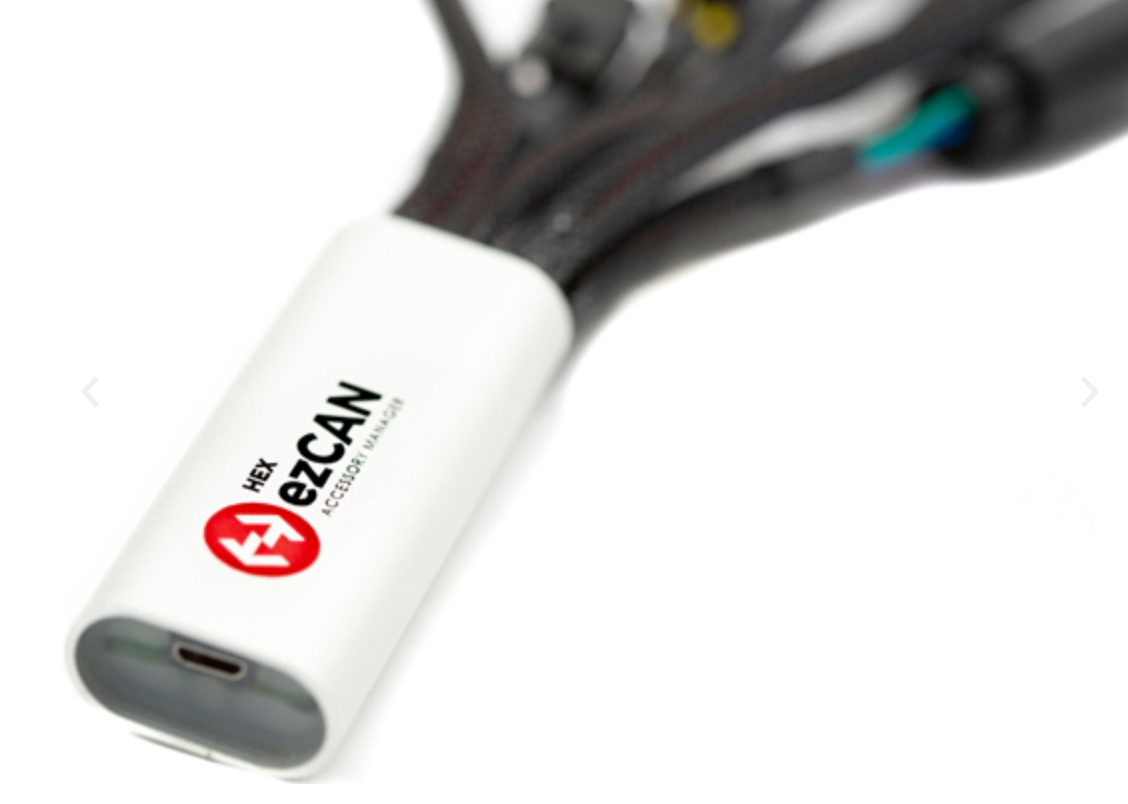

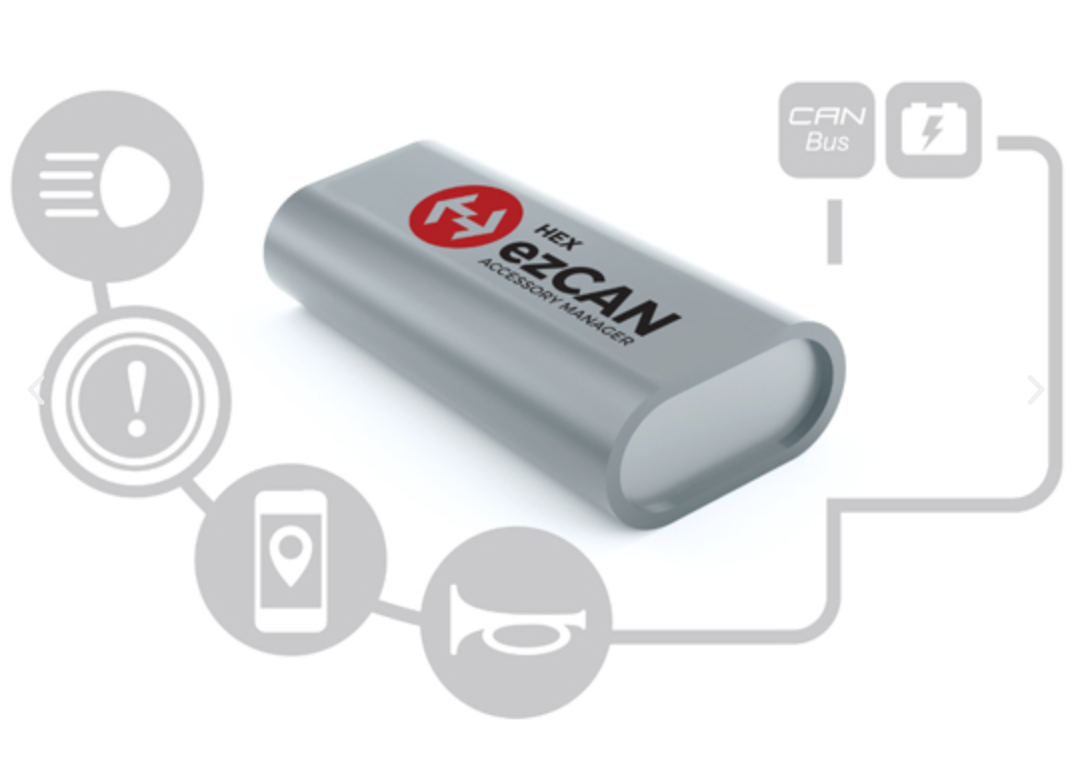

The new generation of HEX ezCAN - an accessory manager for motorcycles which enables you to seamlessly add various aftermarket accessories such as additional lights, air horns, GPS, heated jacket and a phone charger with ease and without cutting any wires or voiding your warranty.

Consider purchasing the "Standard ezCAN controller + RUBY conversion cables" for a truly plug and play installation.  This options removes the need for the Hex Extension Cable kit with enough length to reach from the front of any large displacement motorcycle to underneath the rear passenger seat for safe and secure placement of your ezCAN controller.

Key Features

• One device manages everything
• Integrates additional safety features
• Does not void warranty
• Plugs directly into CAN-Bus (saves installation time and wiring complexity)
• Unobtrusive - fits perfectly under the seat
• Easy configuration of software via USB (Mac and Windows PC)
• Four individually electronically fused channels
• Waterproof and dust-proof

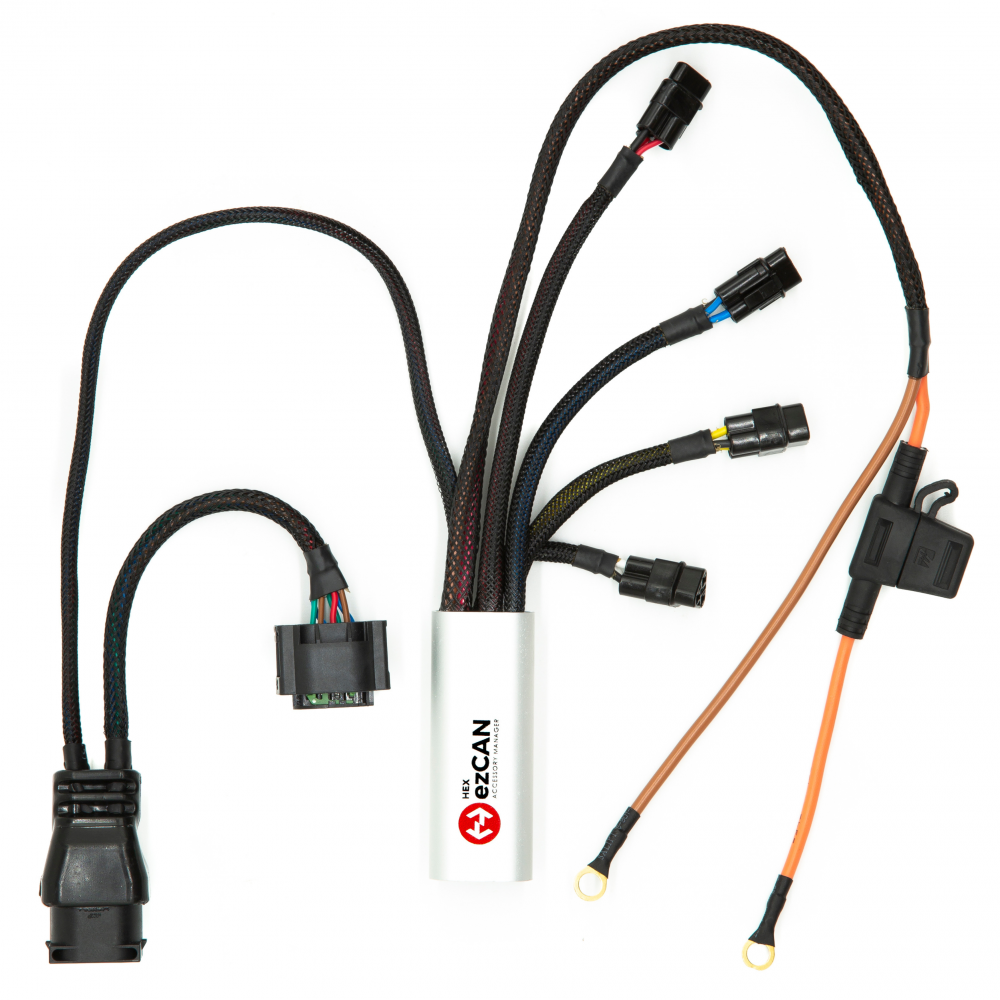

Specifications and Components:

• Waterproof micro USB connector
• Battery connection and fuse
• Two CAN-Bus connectors
• Four high-power outputs (10AMP continuous / 25AMP, max 20 seconds in rush current)
• Weight 358 g (12 oz)

• Product size 55 x 30 x 16mm (2.2 " x 1.2" x 0.6")

Easy Installation:

1. Download and install the HEX ezCAN software

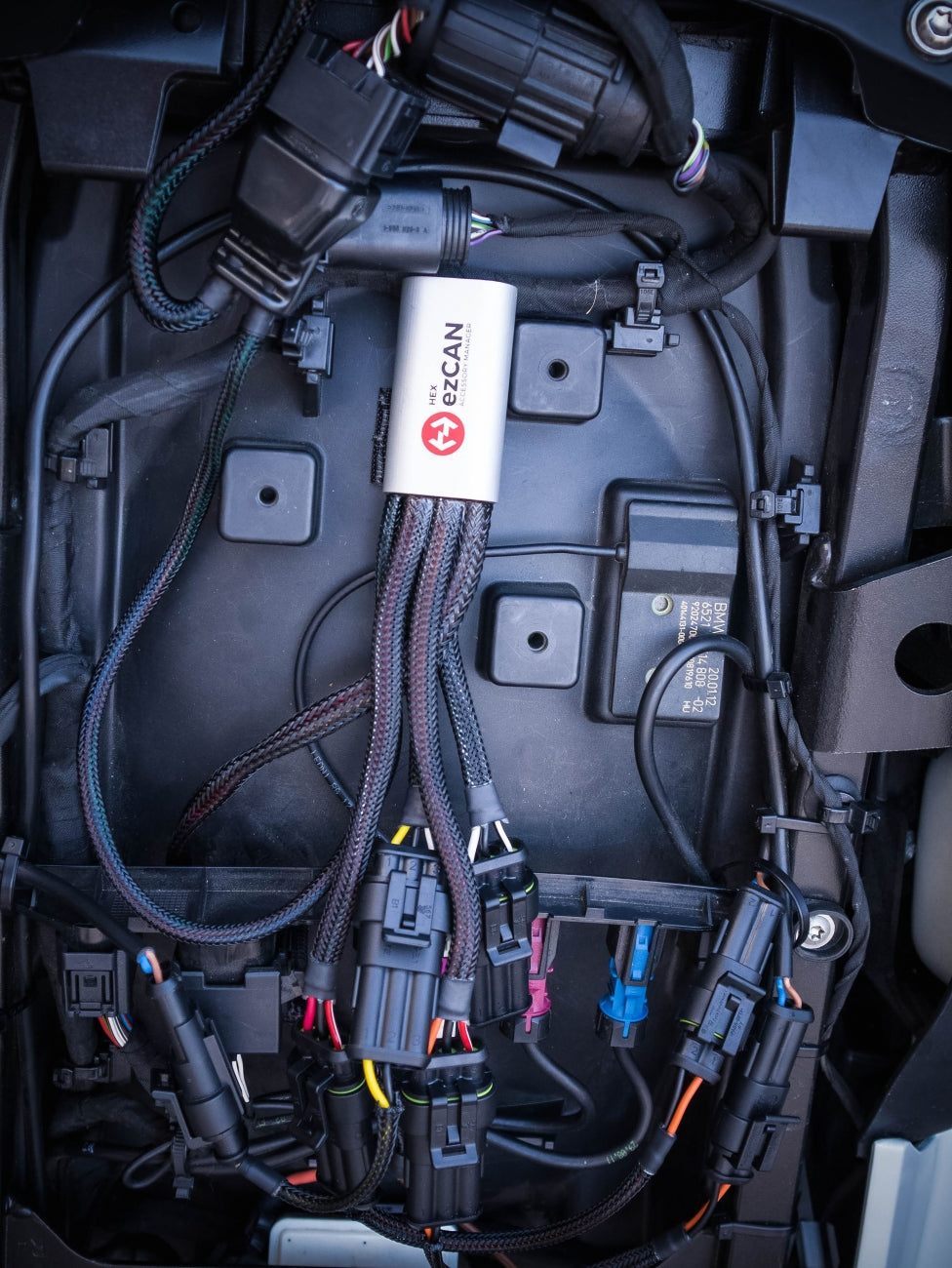

2. Install the ezCAN under the seat (Velcro included)
3. Route and connect the ezCAN battery cables
4. Plug the ezCAN into the motorcycle CAN-Bus
5. Plug accessories into the ezCAN
6. Use the software to configure the ezCAN via USB (Mac or Windows PC Software)

Software:

The HEX ezCAN software is available for both Mac and Windows PC and is used via a micro USB cable, which is included in the package.

Use Channel Mapping to select your preferred configuration. The Configuration window then lets you customize the behavior of your accessories according to CAN-Bus inputs, for example setting up an emergency brake light to flash when the ezCAN detects harsh deceleration or the LEDs to flash when the air horn is activated. Accessory/Ignition supply can be set to remain on for a specific time after the ignition is turned off.

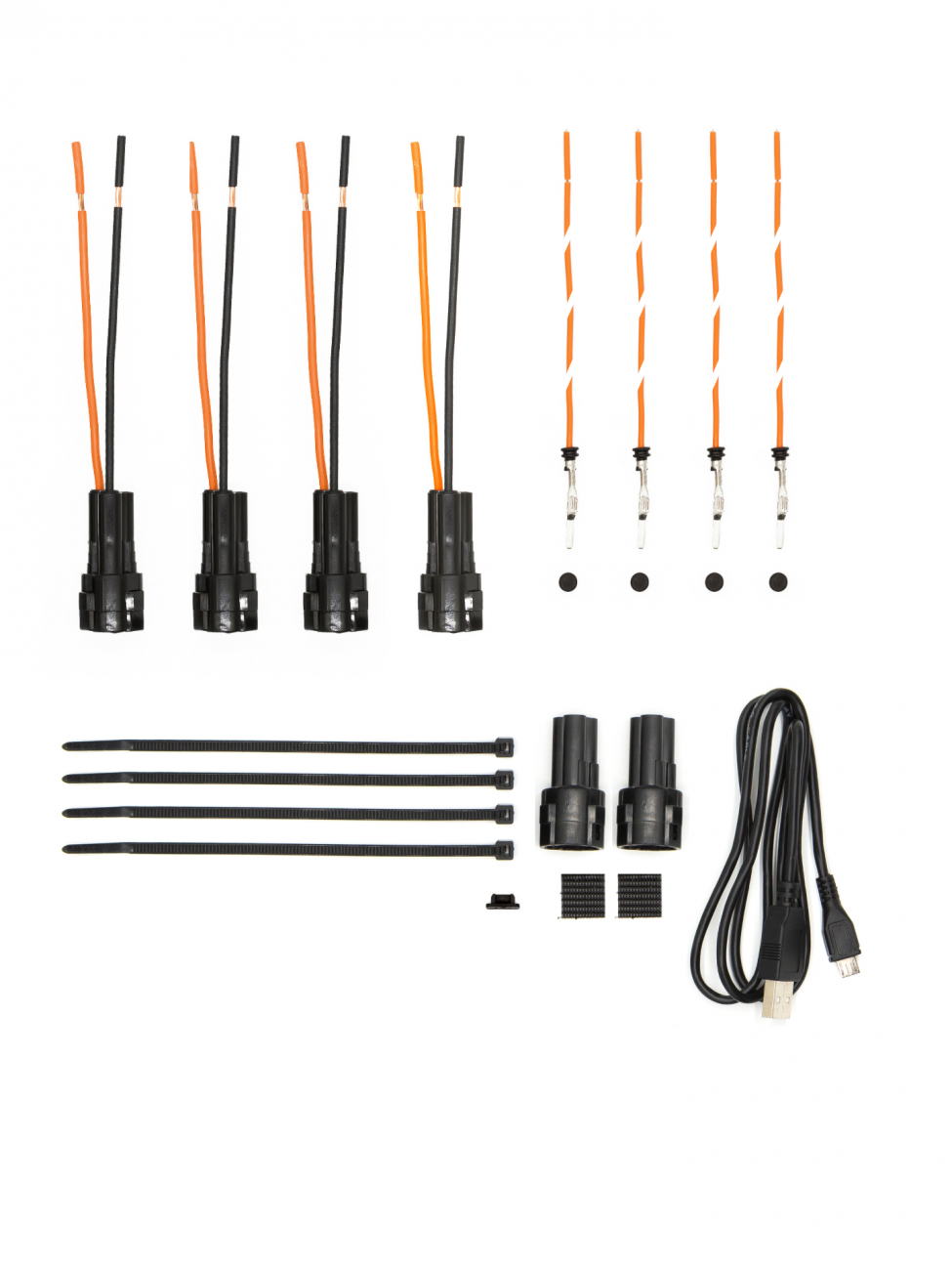

Contents of Package:

• 1 x ezCAN Device
• 1 x Micro USB Cable
• 2 x Velcro Strips
• 2 x Blanking Plugs
• 4 x Cable Ties
• 4 x Two-wire stub connectors (Orange)
• 4 x Terminal wires (Orange)
• 4 x Blanking seals
• 1 x Extra micro USB Dust Covers

More Information:

For more information about this specific Hex ezCAN model, step by step installation guide, and bike specific limitations, please click here to be directed to Hex directly.
