HEX ezCAN II for BMW R1200 & R1250 Liquid Cooled Lighting & Accessory Controller

For the following BMW models, most all GS, GSA, R, RT, RS made after 2013.

• R1200GS-LC
• R1200GSA-LC
• R1200R-LC
• R1200RS-LC
• R1200RT-LC
• R1250GS
• R1250GSA
• R1250R
• R1250RS
• R1250RT

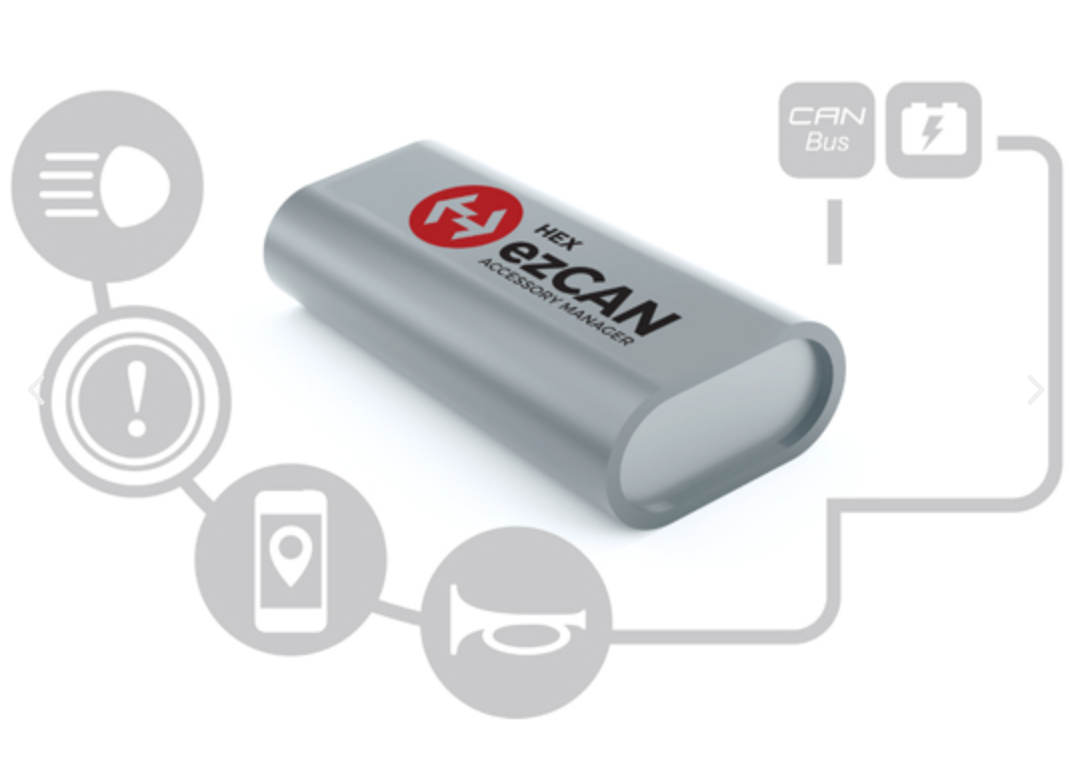

The new generation of HEX ezCAN - an accessory manager for motorcycles which enables you to seamlessly add various aftermarket accessories such as additional lights, air horns, GPS, heated jacket and a phone charger with ease and without cutting any wires or voiding your warranty.

Consider purchasing the "Standard ezCAN controller + RUBY conversion cables" for a truly plug and play installation.  This options removes the need for the Hex Extension Cable kit with enough length to reach from the front of any large displacement motorcycle to underneath the rear passenger seat for safe and secure placement of your ezCAN controller.

Key Features

• One device manages everything
• Integrates additional safety features
• Does not void warranty
• Plugs directly into CAN-Bus (saves installation time and wiring complexity)
• Unobtrusive - fits perfectly under the seat
• Easy configuration of software via USB (Mac and Windows PC)
• Four individually electronically fused channels
• Waterproof and dust-proof

Specifications and Components:

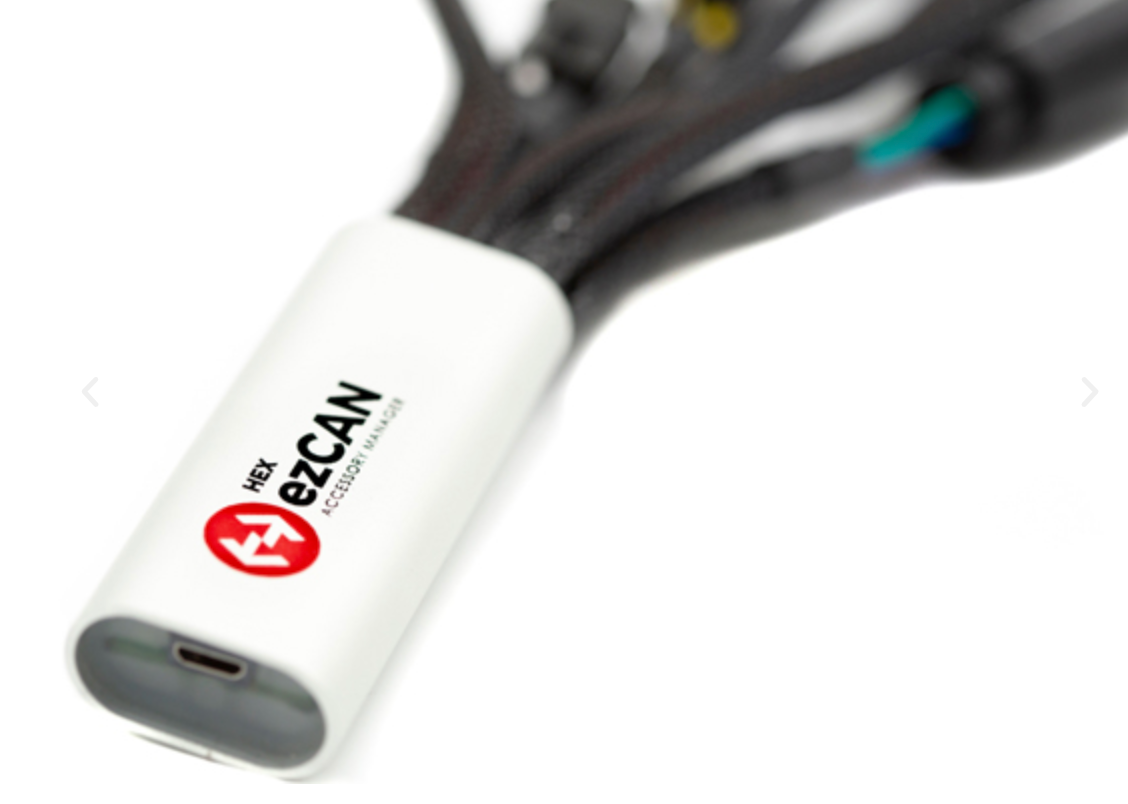

• Waterproof micro USB connector
• Battery connection and fuse
• Two CAN-Bus connectors
• Four high-power outputs (10AMP continuous / 25AMP, max 20 seconds in rush current)
• Weight 358 g (12 oz)

• Product size 55 x 30 x 16mm (2.2 " x 1.2" x 0.6")

Easy Installation:

1. Download and install the HEX ezCAN software

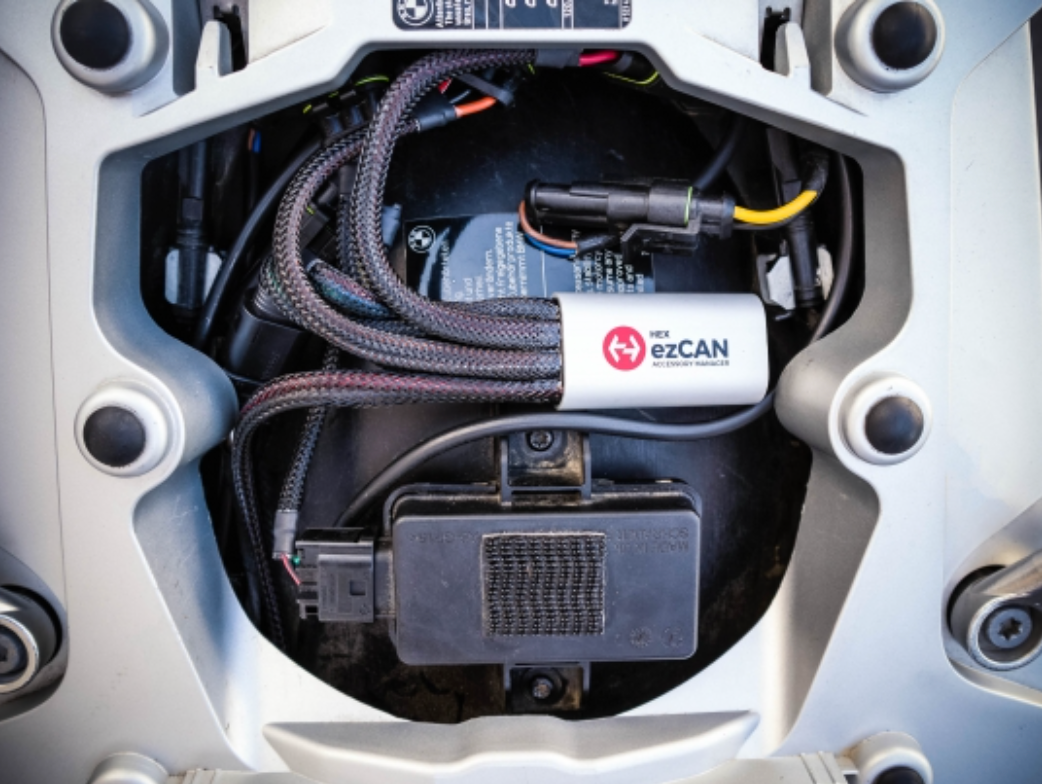

2. Install the ezCAN under the seat (Velcro included)
3. Route and connect the ezCAN battery cables
4. Plug the ezCAN into the motorcycle CAN-Bus
5. Plug accessories into the ezCAN
6. Use the software to configure the ezCAN via USB (Mac or Windows PC Software)

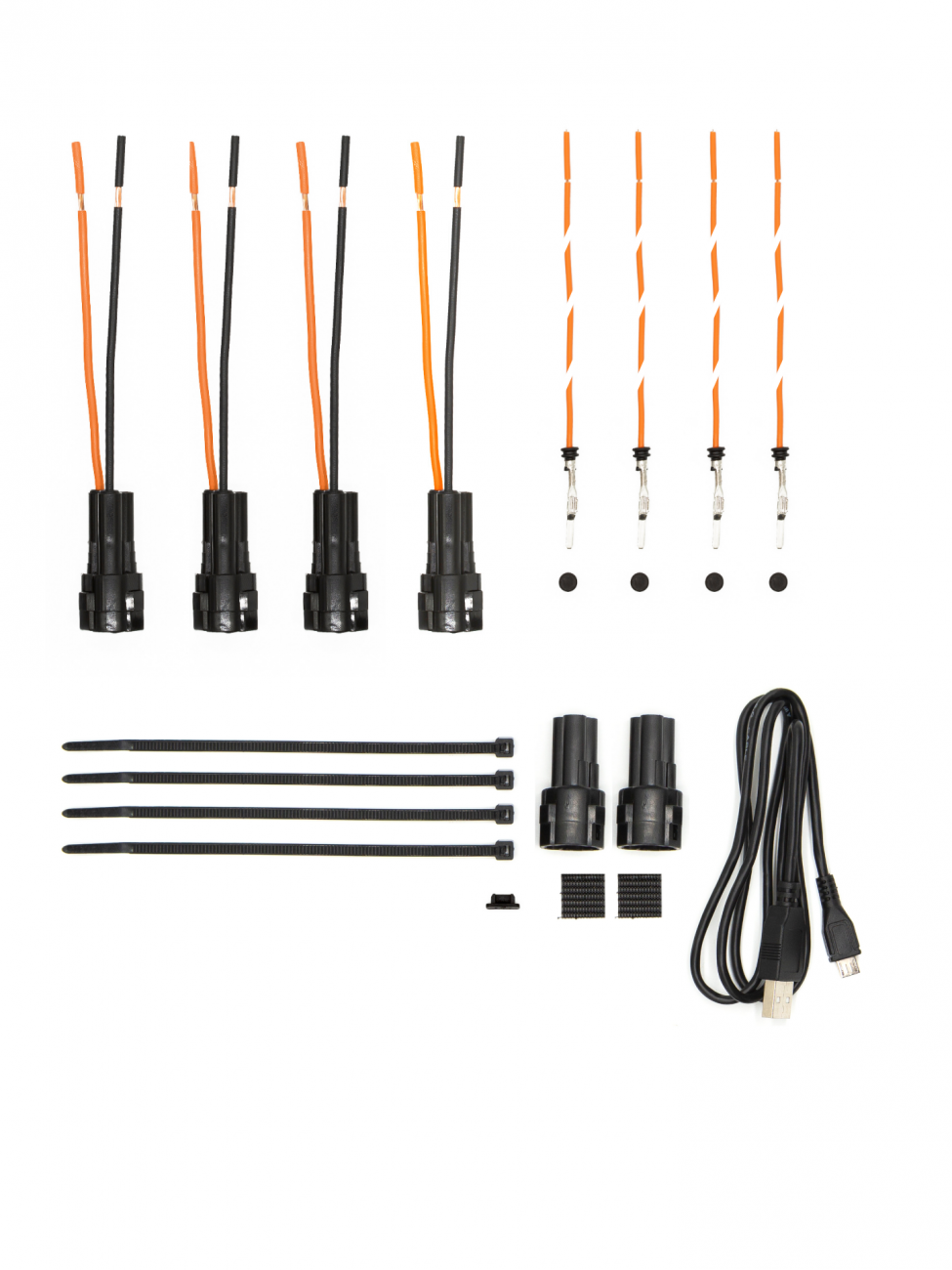

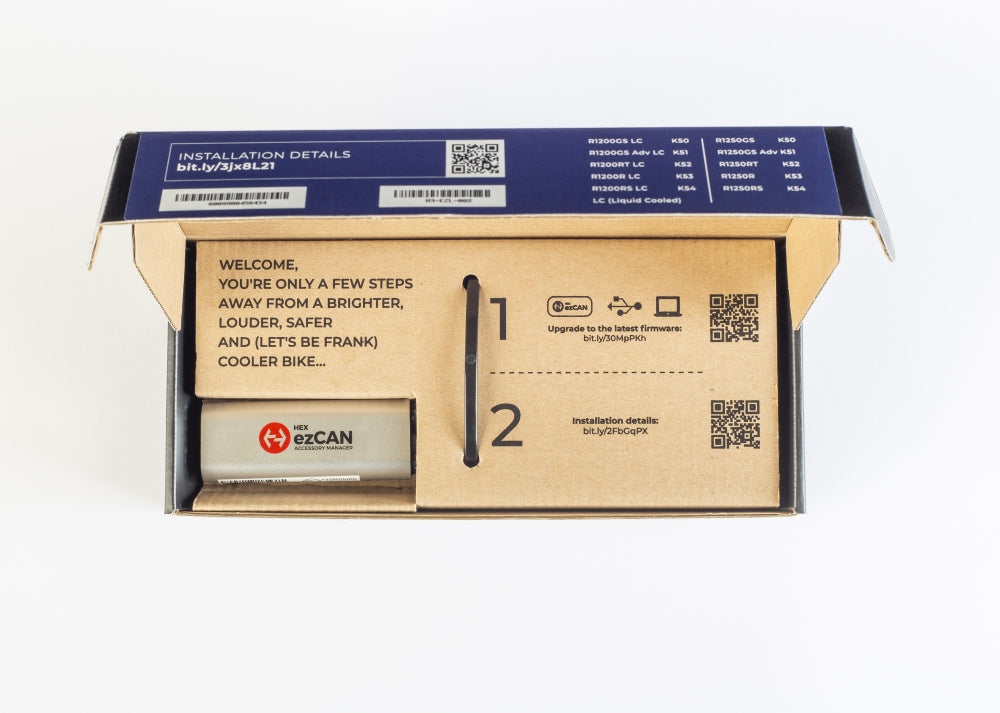

Contents of Package:

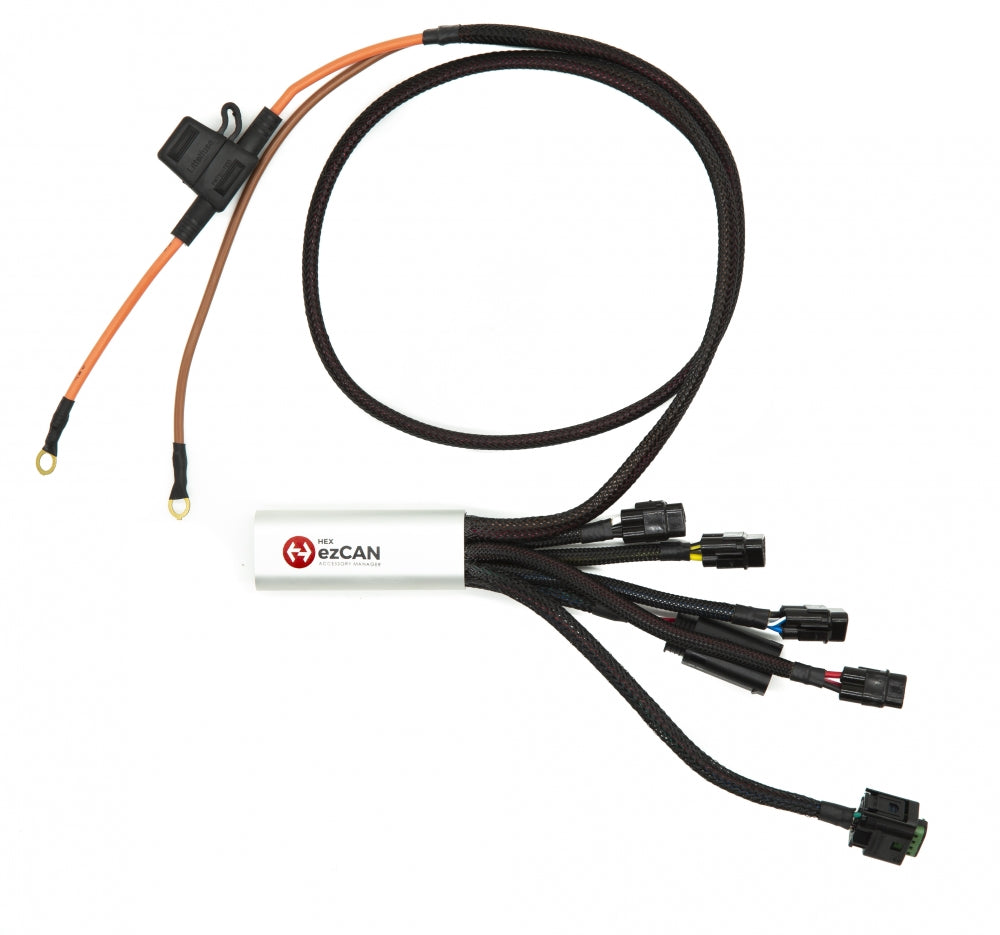

• 1 x ezCAN Device
• 1 x Micro USB Cable
• 2 x Velcro Strips
• 2 x Blanking Plugs
• 4 x Cable Ties
• 4 x Two-wire stub connectors (Orange)
• 4 x Terminal wires (Orange)
• 4 x Blanking seals
• 1 x Extra micro USB Dust Covers

More Information:

For more information about this specific Hex ezCAN model, step by step installation guide, and bike specific limitations, please click here to be directed to Hex directly.
